Question 1

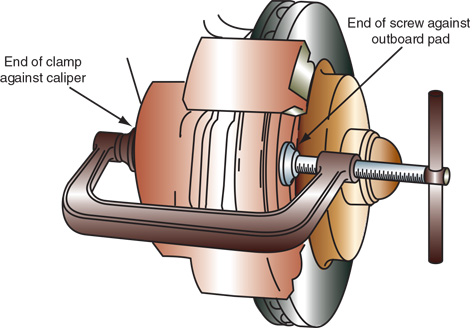

The tool shown in the illustration is used to: ​

Accepted Answer

A)  extend the rear caliper piston.
B)  retract the front caliper piston.
C)  retract the rear caliper piston.
D)  extend the front caliper piston.E) B) and C)
F) A) and D)

Question 2

Explain the purpose of the disc brake caliper.

Accepted Answer

The disc brake caliper convert...

Question 3

Rollers are held in place by the ____________________ mounted to the inner race.

Accepted Answer

The answer of Rollers are held in place by the...

Question 4

What are disadvantages of phenolic pistons?

Accepted Answer

They have a tendency to wear f...

Question 5

Explain the purpose of the Automotive Friction Material Edge Code.

Accepted Answer

The friction material of a new brake pad...

Question 6

Which brake friction material has been phased out due to health hazards?

Accepted Answer

The answer of Which brake friction material has been phased...

Question 7

The caliper assembly shown in the following figure is a fixed caliper.
 ​

Accepted Answer

A) True
 B)False

Question 8

The friction material used for disc brake pads is generally harder than that used on drum brake linings.

Accepted Answer

A) True
 B)False  True

Question 9

Why should disc brake drag be avoided?

Accepted Answer

Brake drag increases pad and rotor wear and creates friction that the engine has to overcome, wasting fuel. Heat buildup in brakes will warp the rotors and drum, and may overheat the wheel bearing grease.

Question 10

After installing new brake pads, the pads require _____________ during the _______ ______ before returning the vehicle to the customer.

Accepted Answer

burnishing, test drive

Question 11

Technician A says some rear disc brakes have a small parking brake drum built into the center of the rotor. Technician B says some rear disc brakes move the caliper piston to apply the parking brake. Who is correct?

Accepted Answer

A)  A only
B)  B only
C)  Both A and B
D)  Neither A nor BE) A) and B)
F) None of the above

Question 12

New caliper piston seals should be lubricated with:

Accepted Answer

A)  clean brake fluid.
B)  silicone grease.
C)  petroleum jelly.
D)  either B or C.E) None of the above
F) A) and D)

Question 13

Most caliper bodies have one or two large openings in the top of the casting through which the lining thickness can be inspected .

Accepted Answer

A) True
 B)False

Question 14

Technician A says the procedure-indicated illustration is a method of seating new pads. Technician B says the procedure shown is a method of retracting the caliper piston. Who is correct? ​

​

Accepted Answer

A)  A only
B)  B only
C)  Both A and B
D)  Neither A nor BE) B) and D)
F) A) and C)

Question 15

Technician A says the seal around the piston is used to seal the hydraulic pressure behind the piston. Technician B says the seal around the piston is used to retract the piston. Who is correct?

Accepted Answer

A)  A only
B)  B only
C)  Both A and B
D)  Neither A nor BE) A) and B)
F) A) and C)

Question 16

Technician A says excellent refinishing results can be achieved with an on-vehicle lathe. Technician B says one advantage of an on-vehicle lathe is that the rotor does not have to be removed from the spindle or the hub. Who is correct?

Accepted Answer

A)  A only
B)  B only
C)  Both A and B
D)  Neither A nor BE) A) and B)
F) B) and D)

Question 17

Vacuum enclosures and _____________ or water-based cleaning equipment are among the most popular for brake service and should always be used to clean brake assemblies and components.

Accepted Answer

The answer of Vacuum enclosures and _____________ or water-based cleaning...

Question 18

All of the following statements about hard spots in the rotor are true EXCEPT:

Accepted Answer

A)  hard spots cause the rotor to expand.
B)  hard spots  appear as round, shiny, bluish areas on the friction surface.
C)  hard spots are difficult to machine, and may require special cutting bits for a brake lathe.
D)  most car manufacturers recommend replacing a rotor with hard spots.E) B) and C)
F) None of the above

Question 19

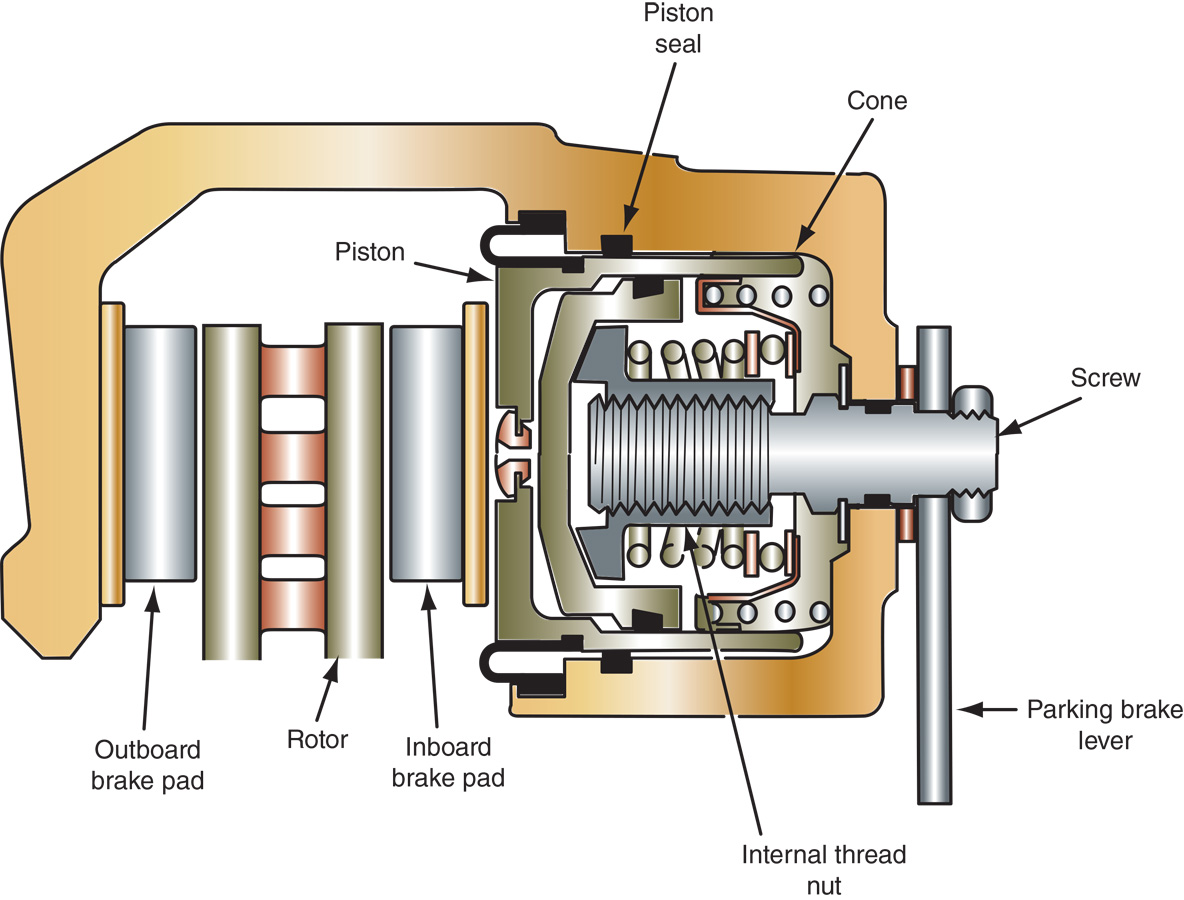

Technician A says the figure below shows a front disc brake caliper assembly used on a front-wheel drive vehicle. Technician B says the figure below shows a rear disc brake caliper assembly. Who is correct? ​

Accepted Answer

A)  A only
B)  B only
C)  Both A and B
D)  Neither A nor BE) B) and D)
F) B) and C)

Question 20

An integral hub means that the hub and the rest of the rotor are cast as a single part.

Accepted Answer

A) True
 B)False

Exam 7: Disc Brakes

The tool shown in the illustration is used to: ​

Correct AnswerverifiedShow Answer

Explain the purpose of the disc brake caliper.

Correct AnswerverifiedThe disc brake caliper convert...View AnswerShow Answer

Rollers are held in place by the ____________________ mounted to the inner race.

Correct AnswerverifiedShow Answer

What are disadvantages of phenolic pistons?

Correct AnswerverifiedThey have a tendency to wear f...View AnswerShow Answer

Explain the purpose of the Automotive Friction Material Edge Code.

Correct AnswerverifiedThe friction material of a new brake pad...View AnswerShow Answer

Which brake friction material has been phased out due to health hazards?

Correct AnswerverifiedShow Answer

The caliper assembly shown in the following figure is a fixed caliper. ​

Correct AnswerverifiedShow Answer

The friction material used for disc brake pads is generally harder than that used on drum brake linings.

Correct AnswerverifiedTrue

Why should disc brake drag be avoided?

Correct AnswerverifiedBrake drag increases pad and rotor wear and creates friction that the engine has to overcome, wasting fuel. Heat buildup in brakes will warp the rotors and drum, and may overheat the wheel bearing grease.

After installing new brake pads, the pads require _____________ during the _______ ______ before returning the vehicle to the customer.

Correct Answerverifiedburnishing, test drive

Technician A says some rear disc brakes have a small parking brake drum built into the center of the rotor. Technician B says some rear disc brakes move the caliper piston to apply the parking brake. Who is correct?

Correct AnswerverifiedShow Answer

New caliper piston seals should be lubricated with:

Correct AnswerverifiedShow Answer

Most caliper bodies have one or two large openings in the top of the casting through which the lining thickness can be inspected .

Correct AnswerverifiedShow Answer

Technician A says the procedure-indicated illustration is a method of seating new pads. Technician B says the procedure shown is a method of retracting the caliper piston. Who is correct? ​ ​

Correct AnswerverifiedShow Answer

Technician A says the seal around the piston is used to seal the hydraulic pressure behind the piston. Technician B says the seal around the piston is used to retract the piston. Who is correct?

Correct AnswerverifiedShow Answer

Technician A says excellent refinishing results can be achieved with an on-vehicle lathe. Technician B says one advantage of an on-vehicle lathe is that the rotor does not have to be removed from the spindle or the hub. Who is correct?

Correct AnswerverifiedShow Answer

Vacuum enclosures and _____________ or water-based cleaning equipment are among the most popular for brake service and should always be used to clean brake assemblies and components.

Correct AnswerverifiedShow Answer

All of the following statements about hard spots in the rotor are true EXCEPT:

Correct AnswerverifiedShow Answer

Technician A says the figure below shows a front disc brake caliper assembly used on a front-wheel drive vehicle. Technician B says the figure below shows a rear disc brake caliper assembly. Who is correct? ​

Correct AnswerverifiedShow Answer

An integral hub means that the hub and the rest of the rotor are cast as a single part.

Correct AnswerverifiedShow Answer

The tool shown in the illustration is used to:

Correct Answer
verified

Correct Answer
verified
The disc brake caliper convert...
View Answer

Correct Answer
verified

Correct Answer
verified
They have a tendency to wear f...
View Answer

Correct Answer
verified
The friction material of a new brake pad...
View Answer

Correct Answer
verified

The caliper assembly shown in the following figure is a fixed caliper.

Correct Answer
verified

Correct Answer
verified
True

Correct Answer
verified
Brake drag increases pad and rotor wear and creates friction that the engine has to overcome, wasting fuel. Heat buildup in brakes will warp the rotors and drum, and may overheat the wheel bearing grease.

After installing new brake pads, the pads require _________ during the _ ____ before returning the vehicle to the customer.

Correct Answer
verified
burnishing, test drive

Correct Answer
verified

Correct Answer
verified

Correct Answer
verified

Technician A says the procedure-indicated illustration is a method of seating new pads. Technician B says the procedure shown is a method of retracting the caliper piston. Who is correct?

Correct Answer
verified

Correct Answer
verified

Correct Answer
verified

Correct Answer
verified

Correct Answer
verified

Technician A says the figure below shows a front disc brake caliper assembly used on a front-wheel drive vehicle. Technician B says the figure below shows a rear disc brake caliper assembly. Who is correct?

Correct Answer
verified

Correct Answer
verified
